Precision Base Plate for CMM Fixture – 300mm Size with 0.02mm Flatness
Product Overview

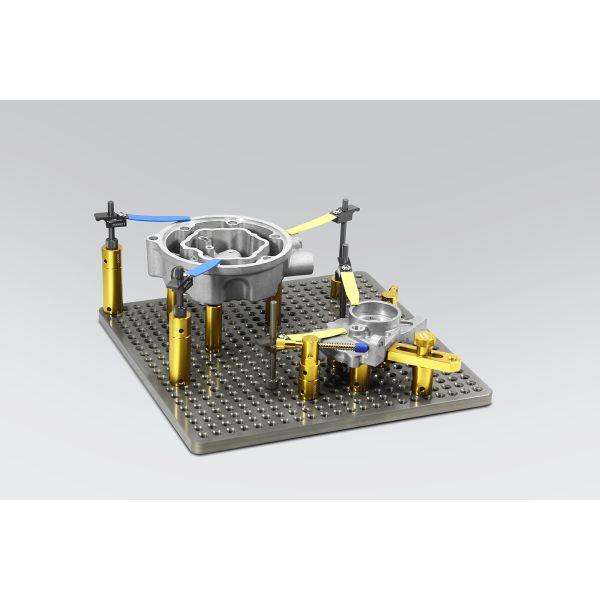

The FlexFix series coordinate measuring machine fixture offers a precision base board measuring 300×300mm, specifically designed for securing small workpieces during 3D measurement operations.
Construction & Manufacturing

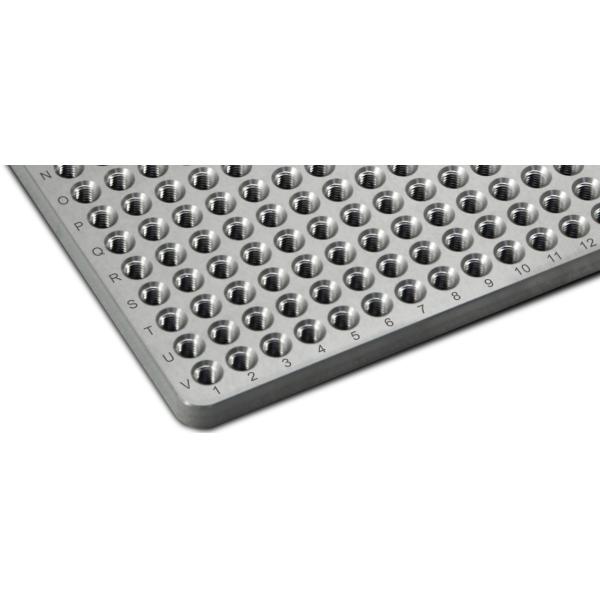

Manufactured from solid aluminum material, these base boards undergo aging processes and precision grinding. The surface features hard anodizing treatment to ensure exceptional rigidity and long-term dimensional accuracy.
Technical Specifications
- Dimensions: 300mm × 300mm
- Flatness: 0.02mm tolerance
- Thread Type: M8 mounting holes
- Material: Solid aluminum with aging treatment
- Surface Finish: Hard anodized
Quality Assurance
The FlexFix series coordinate measuring machine fixture meets stringent tolerance requirements, with flatness accuracy up to 0.04mm, ensuring critical fixture quality for precision measurement applications.
Manufacturer Information
Our Manufacturing Capabilities
Our Clients & Distribution Network
Frequently Asked Questions
Q1: Are you a factory or trading company?
A1: We are a factory and provide responses within 24 hours.
Q2: What does your company primarily manufacture?
A2: We specialize in producing vision measuring machines, coordinate measuring machines, and CMM & VMM fixtures.
Q3: How to choose the appropriate specification?
A3: Our professional team will recommend suitable measuring instrument specifications based on your product variety and measurement requirements.
Q4: Do you accept customized services?
A4: Yes, we provide both standard machines and customized solutions tailored to specific customer needs.
Q5: What is your warranty period?
A5: Our products come with a 1-year warranty. We have enhanced durability in critical components, ensuring reliable product quality.
