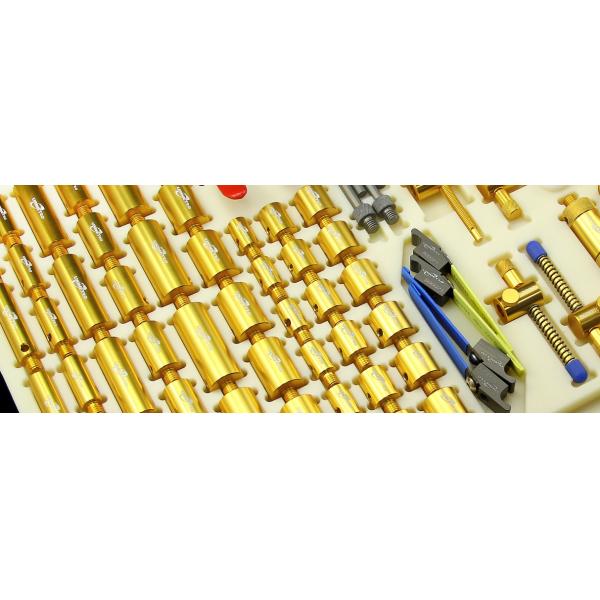

Programmable CMM Fixture Kits, 108 Pieces
Complete coordinate measuring machine fixture system in steel and aluminum with integrated coding system for enhanced measurement accuracy and repeatability.
FlexFix Series Coordinate Measuring Machine Fixtures
The FlexFix series coordinate measuring machine fixtures significantly increase efficiency, repeatability, and accuracy in workpiece measurement. The fast combination and coding system ensures exceptional flexibility, providing complete fixing solutions for workpieces of any size, shape, or material.
Comprehensive Workpiece Fixing Solutions
Applied across aviation, automotive, electronics, and medical industries, the FlexFix series offers complete solutions to satisfy all workpiece fixing requirements.
Advanced Features & Benefits
- Available with M6 or M8 screw options
- Fast combination fixture kits requiring no additional tools
- Laser-printed coding system on base boards for standard programming and recording
- Enhanced measurement repeatability and accuracy
- Eliminates measurement errors caused by fixing offsets
Precision Manufacturing & Surface Processing
Manufactured using advanced CNC machining technology with base boards featuring hard anodizing surface processing. Flatness maintained under 0.05mm (within 500mm). Fixture components utilize color anodizing for high rigidity and hardness, preventing scratches during operation.
All tension press components employ high-accuracy spring steel materials with stable recovery, ensuring pressing stability and improving fixing repeatability.
Product Specifications
| Product Name |
Mark |
Quantity |
| 12*50mm standoff | 80001 | 6 |
| 12*30mm standoff | 80002 | 6 |
| 16*50mm standoff | 80003 | 6 |
| 16*30mm standoff | 80004 | 6 |
| 20*50mm standoff | 80005 | 6 |
| 20*30mm standoff | 80006 | 6 |
| 12*20mm standoff | 80007 | 6 |
| 16*20mm standoff | 80008 | 6 |
| 20*20mm standoff | 80009 | 6 |
| Pusher damp | 800010 | 2 |
| Screw pusher damp | 800011 | 2 |
| Adjustable pivot joint | 800012 | 2 |
| Adjustable jack stand | 800013 | 2 |
| Magnet | 800014 | 4 |
| Pin Standoff | 800015 | 2 |
| Adaptor | 800016 | 6 |
| Baseboard screw | 800017 | 2 |
| V post | 800018 | 2 |
| Screws | 800019 | 2 |
| Adjustable slide | 800020 | 8 |
| Tension clamp | 800021 | 4 |
| Hold down clamp | 800022 | 2 |
| Short tension damp support | 800023 | 2 |
| Long tension clamp support | 800024 | 2 |
| Cone | 800025 | 3 |
| Nylon cone | 800026 | 3 |
| Screwdriver | 800027 | 1 |
Manufacturer Information
We are a professional factory specializing in precision measurement equipment with extensive experience in vision measuring machines, coordinate measuring machines, and CMM/VMM fixtures.
Our Clients & Distribution Network
Frequently Asked Questions
Q1: Are you a factory or trading company?
A1: We are a factory and provide responses within 24 hours.
Q2: What does your company primarily manufacture?
A2: We specialize in vision measuring machines, coordinate measuring machines, and CMM/VMM fixtures.
Q3: How to choose the appropriate specification?
A3: Our professional team will recommend suitable specifications based on your product variety and measurement requirements.
Q4: Do you accept customized services?
A4: Yes, we provide both standard machines and customized solutions tailored to specific customer needs.
Q5: What is your warranty period?
A5: Our products come with a 1-year warranty. We have enhanced durability in breakable components, ensuring reliable product quality.
