Manual Image Vision Measuring Machine with 0.5 µm Resolution and ISO Certification

Name: Manual Image Vision Measuring Machine with 05 µm Resolution and ISO Certification
Brand: UNIMETRO
Price: 1 USD

Quality Manual Image Vision Measuring Machine with 0.5 µm Resolution and ISO Certification for sale

Product Name : 0.5um Resolution Manual Image Inspection Machine With ISO Certificate

Model : BASIC

Brand Name : UNIMETRO

Model Number : BASIC

Certification : CE,ISO

Place of Origin : Guangdong, China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 80sets per month

Delivery Time : 7days

Packaging Details : Wooden case+ Vacuum package

Warranty : 12 months

Stock quantity : 5 sets

Repeatability : 2.5um

Accuracy : 2.5+L/100um

Linear Scale Resolution : 0.5um

Support : OEM,ODM, Customize

Contact Now

0.5um Resolution Manual Image Inspection Machine With ISO Certificate

Describing

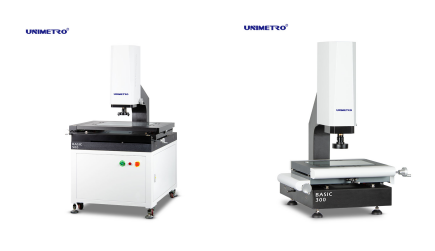

BASIC Series vision measurement machine is designed and developed by UNIMETRO, Which is the most common model for most of the factories manufacturing accurate parts. It is fit for small quantity samples measuring application. 3 axis manual control, with user-friendly software, allows the operator to manage using the machine in very short time.

Manual Image Vision Measuring Machine with 0.5 µm Resolution and ISO Certification

Parameters

Model		BASIC 200	BASIC 300	BASIC 400	BASIC 500
Dimension(mm)(LWH)		550540930	600740980	700840980	800940980
Measuring range (mm)(XYZ)		200100150	300200200	400300200	500400200
Measuring Accuracy (μm)		2.5+L/100	2.5+L/100	2.5+L/100	3+L/100
Repeatability (μm)		2.5	2.5	2.5	3
Weight (kg)		140kg	190kg	240kg	290kg
Image and Measuring	CCD	1.2M pixel HD digital camera
	Lens	0.7-4.5X manual dented zoom lens with maganification signal feedback sensor
	Magnification	18-195X ( For reference only. With different camera and lens the magnification will be different. )
	Field of View	8.1~1.3mm
	Working distance	80mm
Linear scale resolution		0.5 μm( 0.1μm for option )
Driving system		X,Y,Z axis manual control
Illumination		Programmable 4 sections LED ring surface light , parallel LED contour light , 8 sections LED ring light , co-axial , for option

Features

◆ Quality details control

◆ High performance configuration

◆ Efficient measurement software

◆ Flexible expansibility

Manual Image Vision Measuring Machine with 0.5 µm Resolution and ISO Certification

Programmable Light CCD camera Linear scale Zoom lens

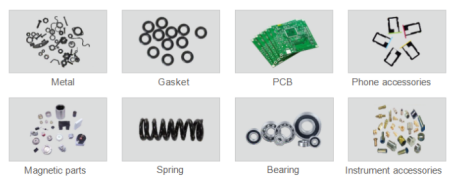

Application

Plastic parts

Electronic parts

Gear parts

Rubber parts

Metal parts

Bearing

Stamping molds

Phone parts

etc.

Company Information

Our Client&Agent

FAQ
Q1: Are you a factory or trading company ?
A1: We are a factory and giving you the quickest reply in 24 hours.
Q2: What's your company mainly in?
A2: We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixturesetc.
Q3: How to Choose the Appropriate Specification?
A3: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring instrument of suitable specifications.
Q4: Do you accept customized service?
A4: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs.
Q5: What is your warranty period?
A5: Our product warranty period is 1 year. Our product quality is very stable, and we have improved a lot on some breakable parts. You can rest assured of our product quality.
