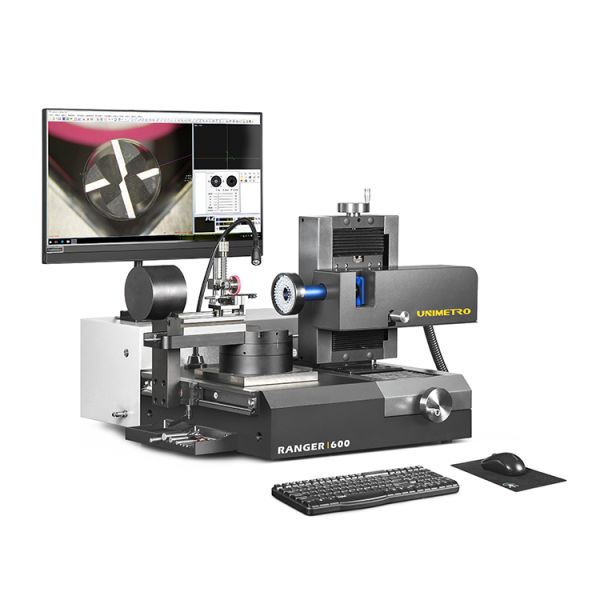

UNIMETRO RANGER600 Tool Video Measuring System
Product Application
The UNIMETRO RANGER600 Tool Inspection System is a universal measuring machine for drills, milling cutters, and countersinks with a flexible illuminating system. Its compact design and stability make it suitable for metrology rooms, receiving inspection, or direct production use. Configured with SMARTOOL universal measuring software, it provides comprehensive control of special tool geometries through a simple PUT-MEASURE-ANALYSE process.
Advanced Design Features
- Ergonomic design with solid construction
- HD image capturing with optional microscope magnification
- Stable V-block for secure tool holding and alignment
- Mechanical fixed measuring angles at 0° and 90°
- High-accuracy embedded encoder for precise angle location
- Programmable LED ring light with contour and auxiliary lighting
- SMARTOOL software with automatic edge detection and CAD comparison
- Excel and CAD file output capability
- All-in-one PC system for enhanced stability
Multiple Angle Measurement Capabilities
The rotary table offers mechanical fixed angles at 0° and 90° positions. The 0° position measures tool ends, center shafts, and front angles, while the 90° position measures helix angles, axial front angles, and rear angles. The embedded encoder provides precise angle location for any required measurement.
0° Position
45° Position
90° Position
Technical Specifications
| Parameter |
Value |
| X axis travel |
80mm |
| Y axis Travel |
60mm |
| Z axis measuring range |
60mm |
| Max tool Diameter |
50mm |
| Max tool length |
300mm |
| Working distance |
90mm |
| Lens |
0.7-4.5X dented zoom lens |
| Camera |
2M pixel HD camera/5M pixel HD camera (Optional) |
| Linear scale resolution |
0.0001mm |
| Magnification |
12.6X~79.2X/25.2X~158.4X (Optional) |
| Field of view |
27*20mm~4.3*3.3mm/13.5*10mm~2.3*1.6mm (Optional) |
| Measuring accuracy |
X~Y,(2.5+L/100)µm (L is measured length) |
| PC |
ALL-IN-ONE PC system, Windows 10 OS, 24" LCD monitor |
| Illumination |
8-section LED ring light, contour light, flexible auxiliary light |
| Input format |
DXF files |
| Output format |
EXCEL, DXF |
Key Features
Easy Operation
High-resolution image display with graphical interface and on-screen function keys.
Dynamic Real-Time Curve View
Real-time edge detection curve view for intuitive measurement analysis.
CAD Comparison
Compare actual tool images with CAD drawings for geometry evaluation.
About UNIMETRO
With over 10 years of experience in metrology, UNIMETRO specializes in high-performance measuring solutions. Our product line includes vision measurement machines, coordinate measurement machines, profile projectors, and core optical components. We offer complete technical support and flexible solutions for global partners.
